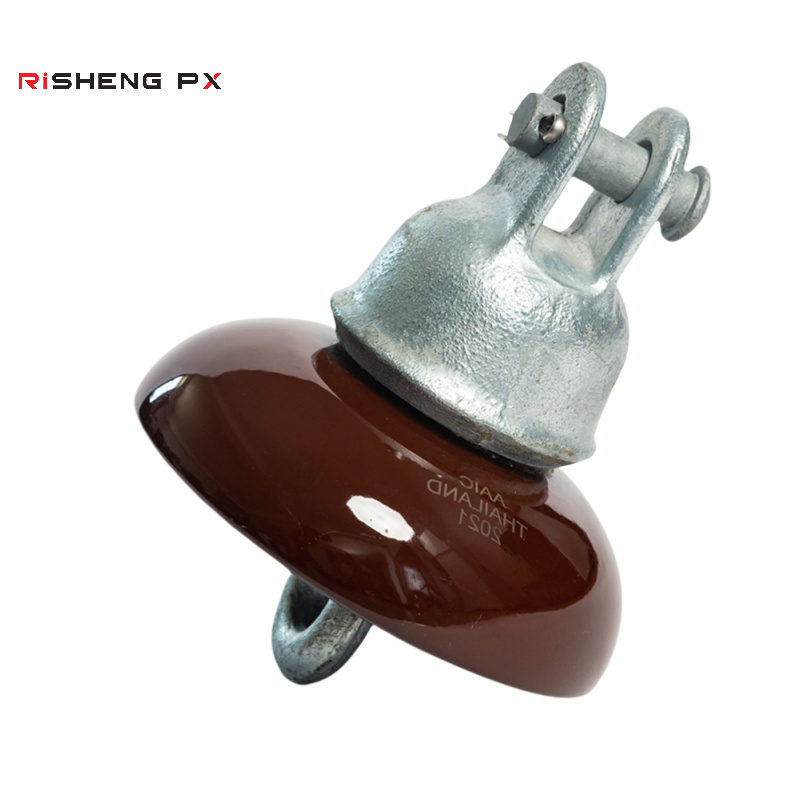

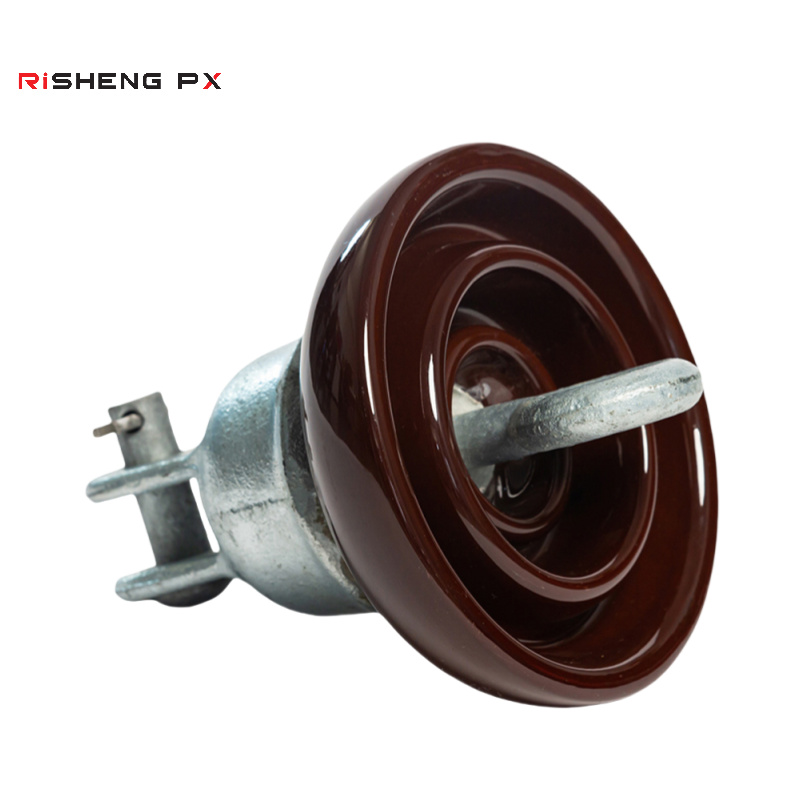

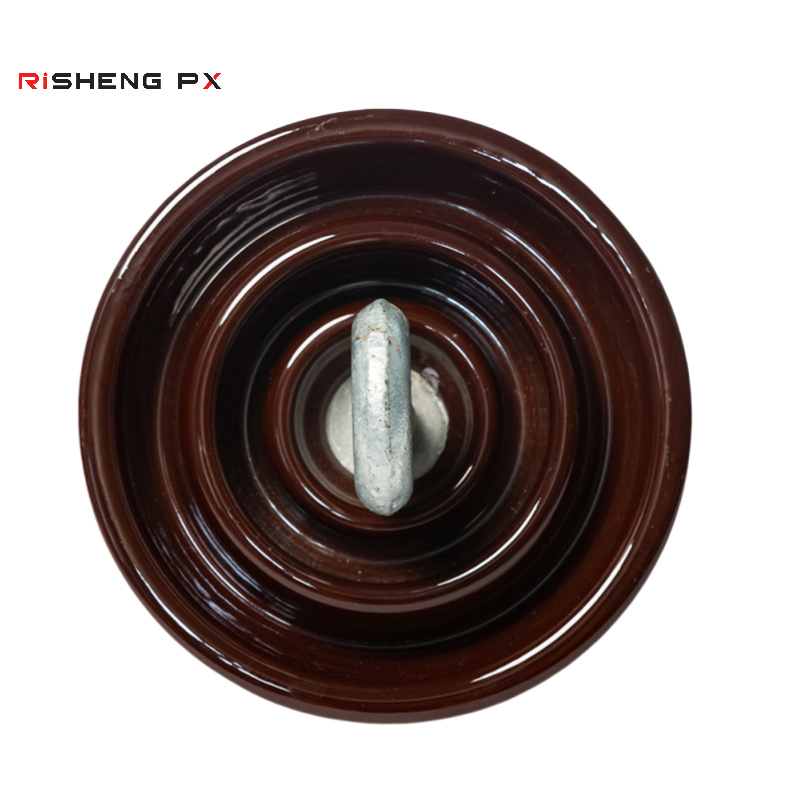

40KN U40C Disc Suspension Porcelain Insulator
video
product description
Ordinary insulators are suitable for general areas. Properly increasing the number of insulators can also improve the pollution flashover performance. Disc suspension porcelain insulator is a special insulation control, which can play an important role in overhead transmission lines.
High voltage line pollution resistant disc-shaped suspension porcelain insulator is suitable for industrial dust, chemical industry, saline alkali, coastal and foggy areas. It is used for insulation and fixed conductors on high-voltage overhead transmission and distribution lines. It is generally assembled into insulator strings for power lines in different voltage levels and different pollution areas.

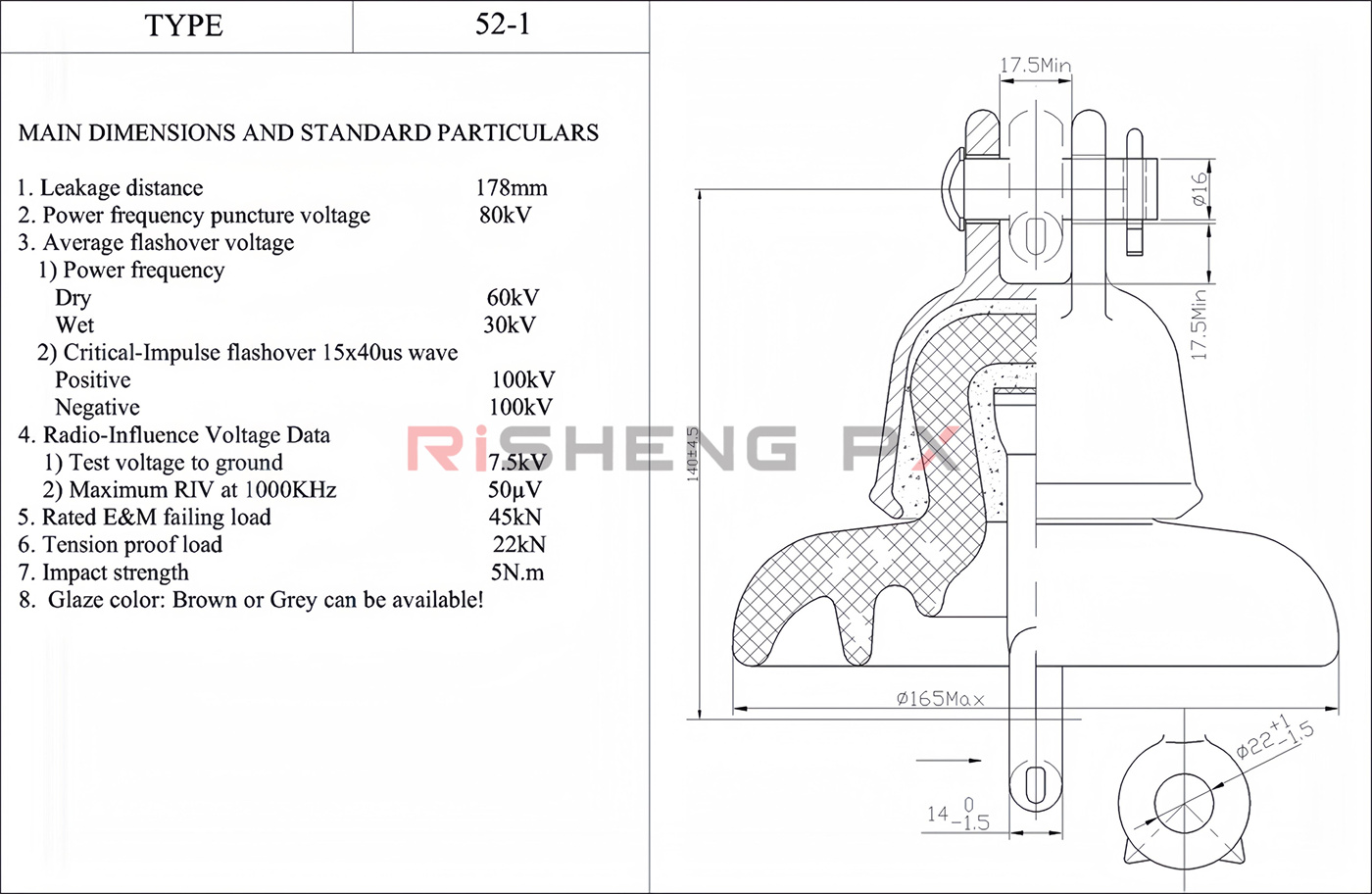

specification
| Ball and socket type suspension porcelain insulators( IEC Class ) | ||
| Type | XP-40 | |
| IEC Class | U40C | |
| Coupling size | 16 | |
| Dimensions | ||
| Diameter(D) | mm | 190 |
| Spacing(H) | mm | 140 |
| Leakage distance | mm | 200 |
| Mechanical Values | ||
| Combined M&E strength | kn | 40 |
| Impact strength | N.m | 5 |
| Routine proof test load | kn | 20 |
| Electrical Values | ||
| power frequency dry withstand voltage | kv | 55 |
| power frequency wet withstand voltage | kv | 30 |
| Dry lightning impulse withstand voltage | kv | 75 |
| Power frequency puncture voltage | kv | 90 |
| Radio influence Voltage Data | ||
| Test voltage RMS to ground | kv | 7.5 |
| Maximum RIV at 1000kHz | μv | 50 |
| Packing and Shipping Data | ||
| Net weight,approximate | kg | 2.8 |
| Color | Brown | |
