High Voltage Transformer Bushing
01

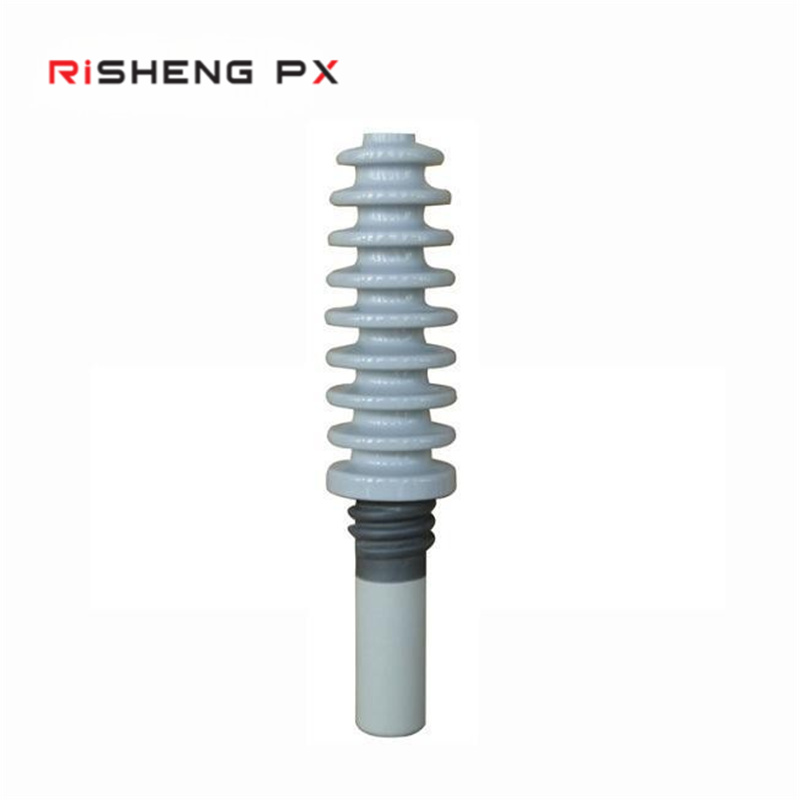

ANSI 24KV Transformer Bushing
Video
product description

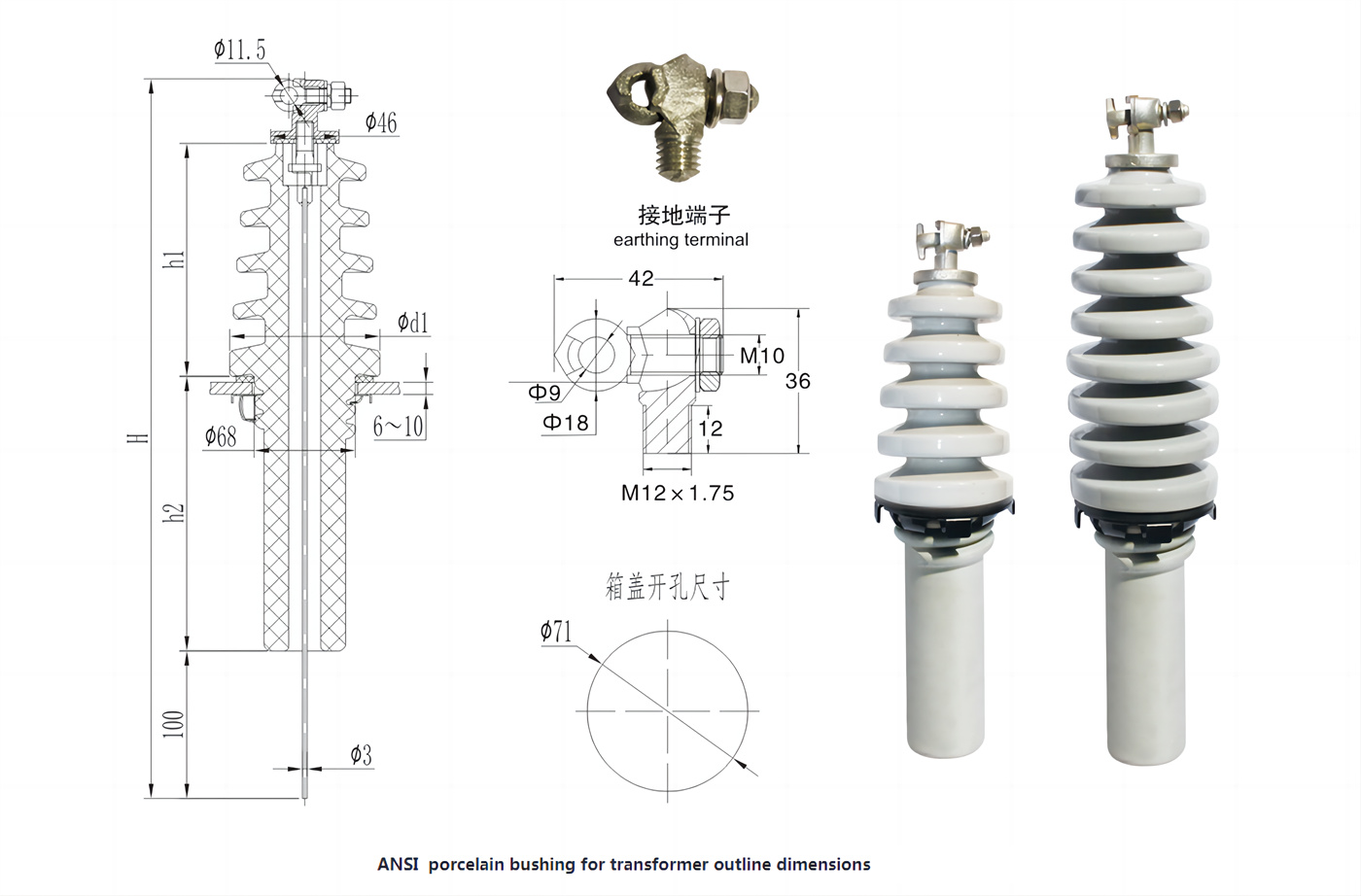

Height: 505mm
Diameter: 108mm
Creepage Distance: 450mm
Arcing Distance:251mm
Rated Voltage: 24kV
Weight: 4.5kgs
This ANSI Transformer bushing is a vital component in transformer equipment. It provides a safe and reliable passage for high-voltage power. The material is high-quality porcelain and the transformer bushings are designed to withstand harsh environments and ensure long-lasting performance.ANSI Transformer Porcelain Bushing 18kV features a streamlined design that reduces the likelihood of flashovers and improves heat dissipation. What’s more, it also meets ANSI standards for electrical and mechanical performance which makes it suitable for use in a wide range of applications.
Transformer porcelain Bushing is essential for power transformers, switchgear, and other electrical equipment. It provides a critical interface between the high-voltage power source and the equipment which ensures that the equipment is protected from electrical arcing and damage. Whether you’re in the power generation, transmission, or distribution industry, this ANSI Standard Transformer Porcelain Bushing 18kV is an excellent choice for your transformer needs. Its durability, reliability, and safety features make it an essential component in any electrical system.
Specifications
Material: Electrical porcelain
Applied Standard: ANSI
We offer 2-3 years quality guarantee.
Bushings have excellent performance due to many years of exporting experience.
