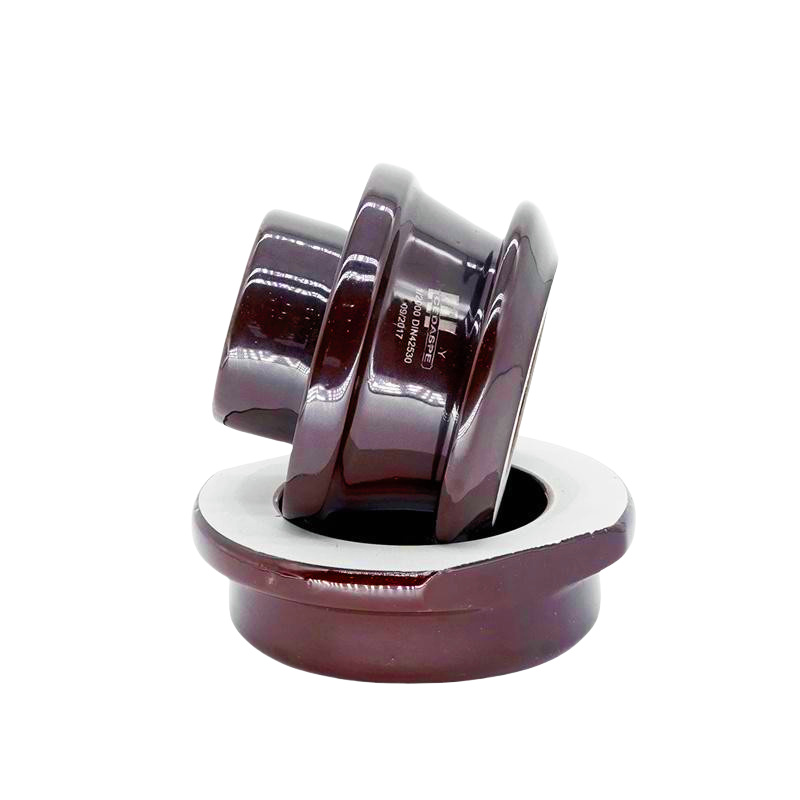

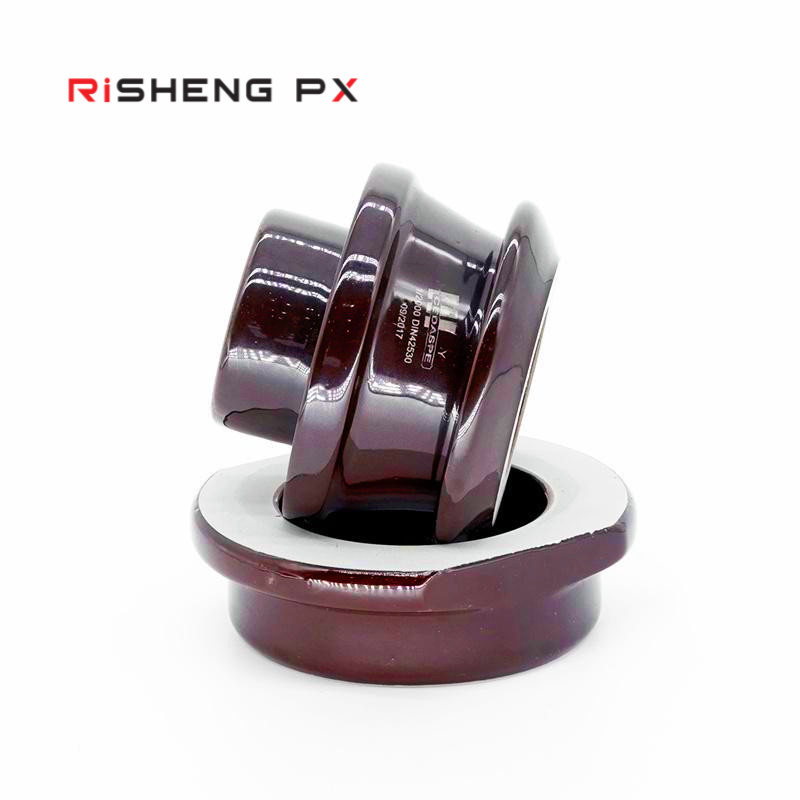

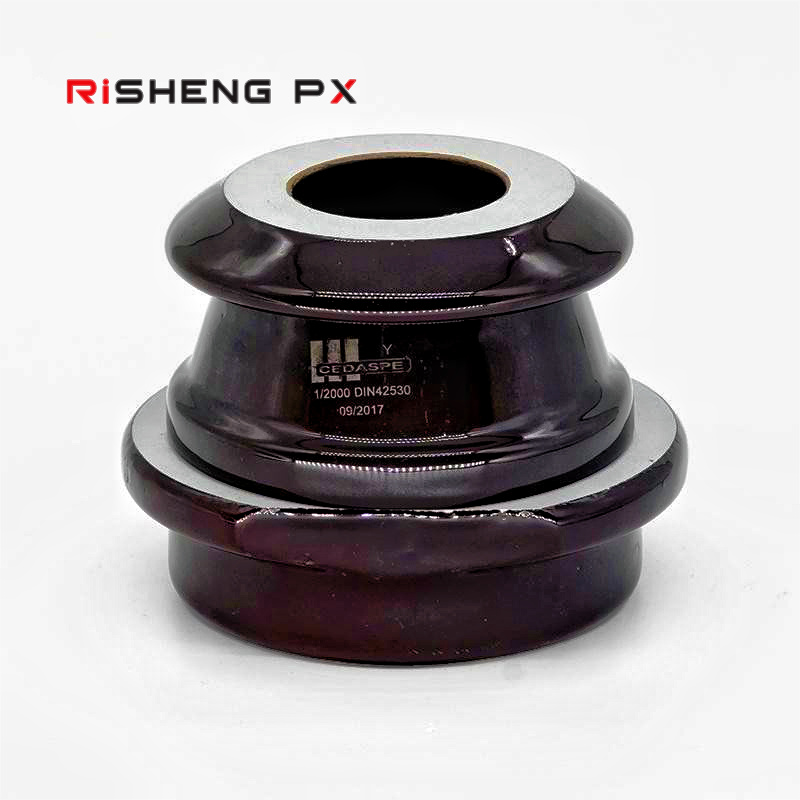

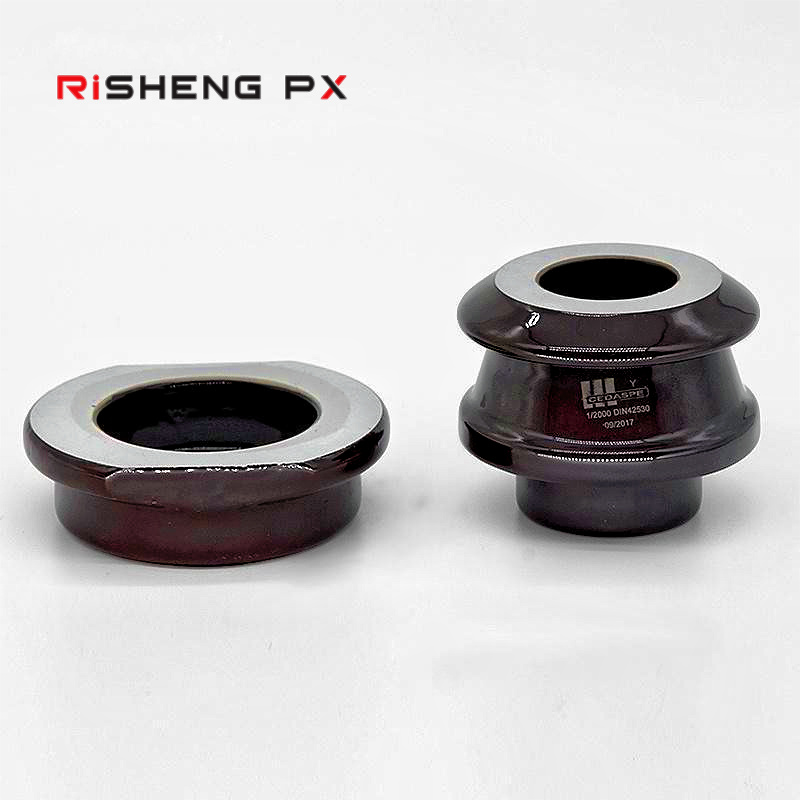

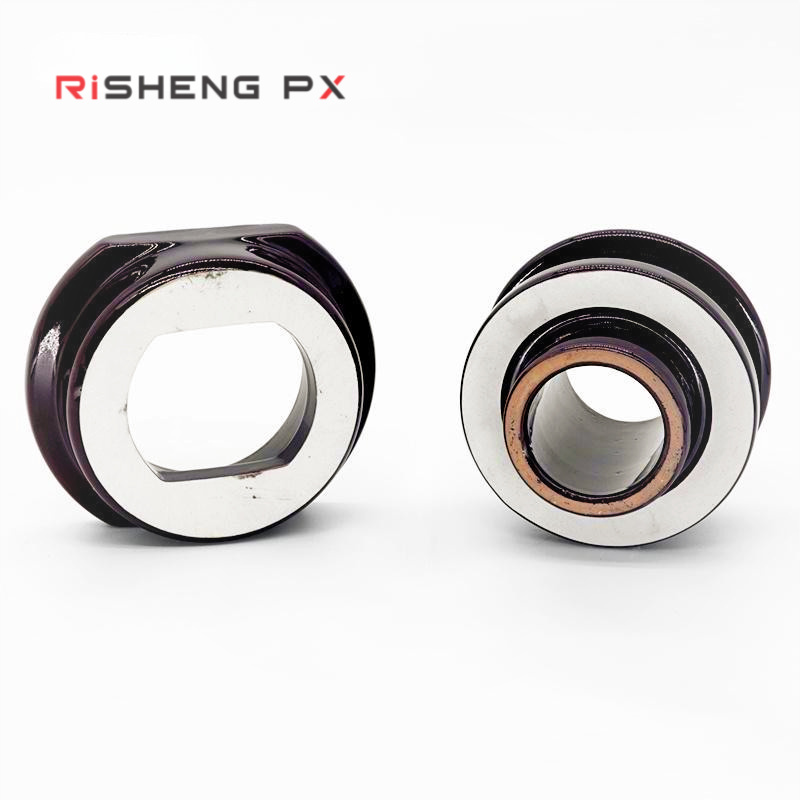

DIN 1KV2000 Transformer Bushing Insulators
video
product description

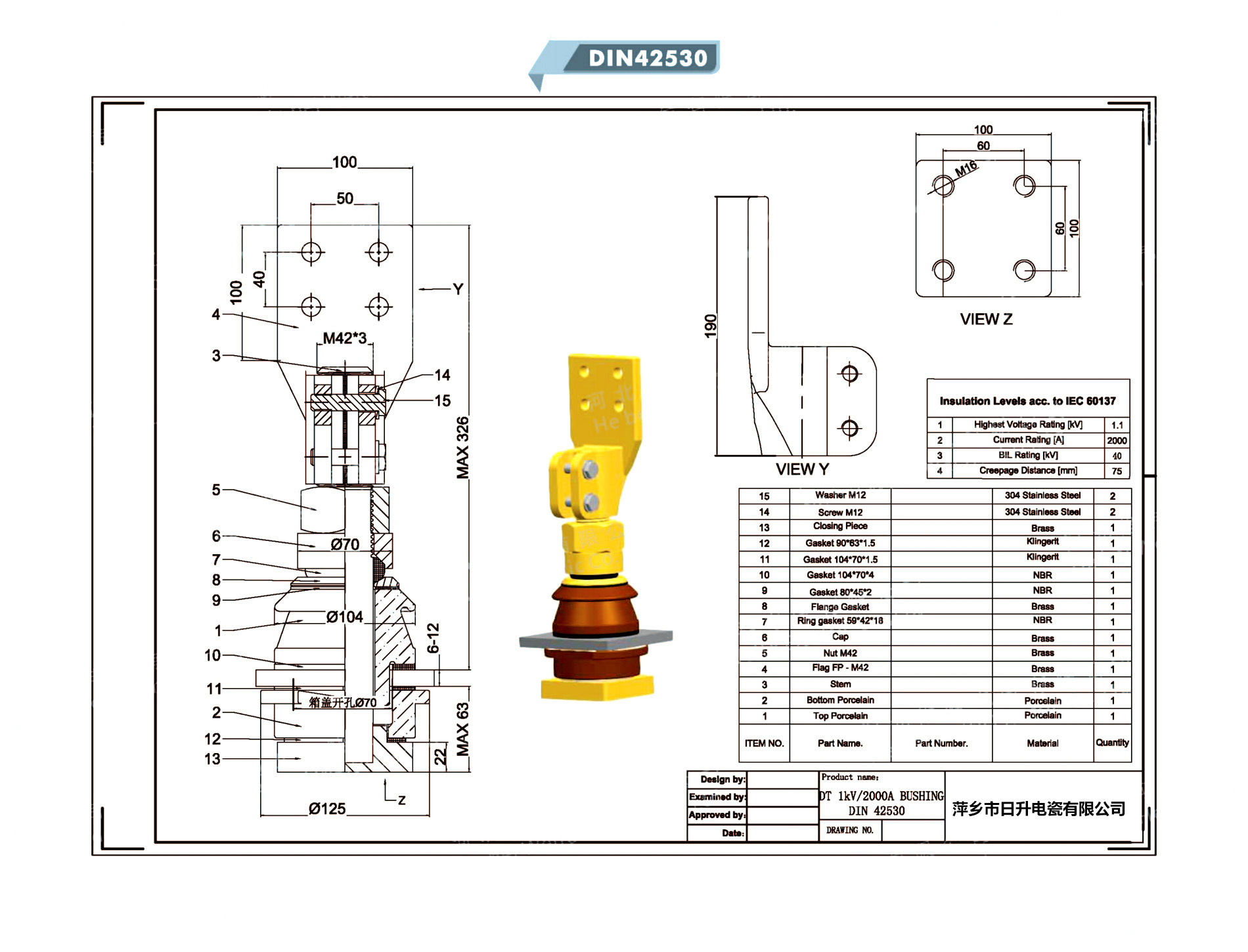

DIN 1KV2000 Transformer Bushing Insulator is an electrical component that meets DIN Standard
Rated Voltage: 1KV
Rated Current: 2000A
Creepage Distance:Min75mm
Usage and Function
DT 1KV2000 transformer bushing insulators serve several vital functions in oil-filled distribution transformers:
1.Electrical Insulation: Their primary purpose is to provide electrical insulation for the conductor carrying current as it passes through the wall of the transformer tank. This prevents electrical faults between the live conductor and the grounded tank.
2.Current Conduction: They provide a safe and reliable path for the electrical current (up to 2000 amperes in this case) to enter or leave the transformer windings.
3.Mechanical Support: The bushing provides mechanical support for the electrical conductor.
4.Sealing: In oil-filled transformers, the bushing helps to maintain the seal of the transformer tank, preventing oil leakage and the ingress of contaminants.
specification
| Bushings are manufactured to DIN 42530,42539,42531,42532,42533,42534 | |||||||||
| PART NUMBER | DESCRIPTION | Voltage RATING(KV) | I RATING(A) | TANK HOLESIZE mm | BIL(KV) | PF DRY | PF WET | CREEPAGE | STEM CONNECTOR |
| DT 1/250 | DIN 42530 1/250 | 1KV | 250 | - | - | - | - | 60 | M12 |
| DT 1/630 | DIN 42530 1/630 | 1KV | 630 | 45 | - | - | - | 75 | M20 |
| DT 1/1000 | DIN 42530 1/1000 | 1KV | 1000 | 56 | - | - | - | 75 | M30 |
| DT 1/2000 | DIN 42530 1/2000 | 1KV | 2000 | 70 | - | - | - | 75 | M42 |
| DT 1/3150 | DIN 42530 1/3150 | 1KV | 3150 | 90 | - | - | - | 75 | M48 |
| DT 3/250 | DIN 42539 3/250 | 3KV | 250 | 39 | 40 | 14 | 10 | 120 | M12 |
| DT 3/630 | DIN 42539 3/630 | 3KV | 630 | 45 | 40 | 14 | 10 | 120 | M20 |
| DT 3/1000 | DIN 42539 3/1000 | 3KV | 1000 | 56 | 40 | 14 | 10 | 125 | M30 |
| DT 3/2000 | DIN 42539 3/2000 | 3KV | 2000 | 70 | 40 | 14 | 10 | 125 | M42 |
| DT 3/3150 | DIN 42539 3/3150 | 3KV | 3150 | 90 | 40 | 14 | 10 | 125 | M48 |
| DT 3/4500 | DIN 42539 3/4500 | 3KV | 4500 | 119 | 40 | 14 | 10 | 130 | M55 |
| DT 3/6500 | DIN 42539 3/6500 | 3KV | 6500 | 119 | 40 | 14 | 10 | 130 | M75 |
| 10NF250 | DIN 42531 10NF250 | 12KV | 250 | 78 | 75 | 28 | - | 305 | M12 |
| 10NF630 | DIN 42532 10NF630 | 12KV | 630 | 90 | 75 | 28 | - | 305 | M20 |
| 10NF1000 | DIN 42533 10NF1000 | 12KV | 1000 | 110 | 75 | 28 | - | 295 | M30 |
| 10NF2000 | DIN 42533 10NF2000 | 12KV | 2000 | 135 | 75 | 28 | - | 295 | M42 |
| 10NF3150 | DIN 42533 10NF3150 | 12KV | 3150 | 135 | 75 | 28 | - | 295 | M48 |
| 20NF250 | DIN 42531 20NF250 | 24KV | 250 | 78 | 125 | 50 | - | 450 | M12 |
| 20NF630 | DIN 42532 20NF630 | 24KV | 630 | 90 | 125 | 50 | - | 440 | M20 |
| 20NF1000 | DIN 42533 20NF1000 | 24KV | 1000 | 110 | 125 | 50 | - | 445 | M30 |
| 20NF2000 | DIN 42533 20NF2000 | 24KV | 2000 | 135 | 125 | 50 | - | 445 | M42 |
| 20NF3150 | DIN 42533 20NF3150 | 24KV | 3150 | 135 | 125 | 50 | - | 445 | M48 |
| 30NF250 | DIN 42531 30NF250 | 36KV | 250 | 78 | 170 | 70 | - | 607 | M12 |
| 30NF630 | DIN 42532 30NF630 | 36KV | 630 | 90 | 170 | 70 | - | 662 | M20 |
| 30NF1000 | DIN 42533 30NF1000 | 36KV | 1000 | 110 | 170 | 70 | - | 635 | M30 |
| 30NF2000 | DIN 42533 30NF2000 | 36KV | 2000 | 135 | 170 | 70 | - | 635 | M42 |
| 30NF3150 | DIN 42533 30NF3150 | 36KV | 3150 | 135 | 170 | 70 | - | 635 | M48 |
