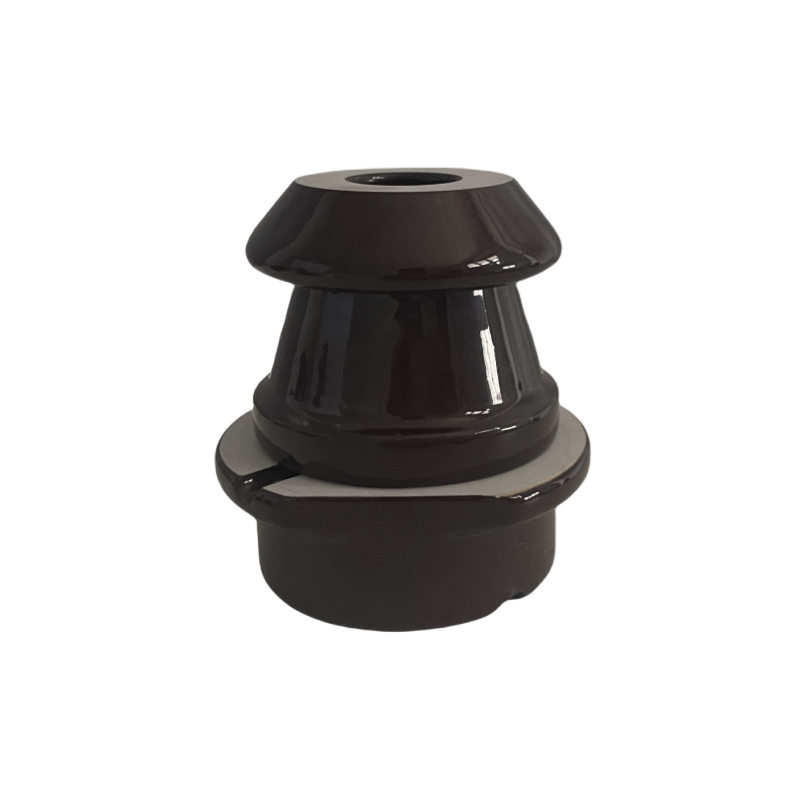

DIN 1KV630 Transformer Bushing Insulators01.jpg

DIN 1KV630 Transformer Bushing Insulators

The LV series are solid porcelain open type bushings designed in accordance with the standard DIN 42539/42530 .Primarily used for indoor and outdoor applications in the field of distribution transformers, these bushings are available in several designs and can be customized to fit almost any kind of customer requirement upon request (i.e. tin plating, special drilling, special connectors, etc.). The LV series features a porcelain insulating body on the oil side; in addition, rods are available both in copper or brass.

    Contact us
    product details

    video

    product description

    DIN 1KV630 Transformer Bushing Insulator is an electrical component that meets the DIN Standard(Germany Standard)
    Rated Voltage: 1 kV
    Rated Current: 630A
    Creepage Distance: Min 75 mm

    Key Features:
    Material: Typically made of porcelain or composite polymer for high dielectric strength and weather resistance.
    Design: Flanged or threaded mounting for secure attachment to transformer tanks.
    May include oil barriers (for oil-filled transformers) or gas sealing (for SF₆transformers).
    Standards Compliance: Manufactured according to DIN 42523, DIN 47636, or other relevant standards for high-voltage bushings.

    Usage:
    Primary Application: Used in power transformers, distribution transformers, and switchgear to safely insulate and route high-voltage conductors entering/exiting the transformer tank.

    Functions

    1.Provides electrical insulation between the live conductor and the grounded transformer tank.
    2.Ensures mechanical stability for conductor connections.
    3.Prevents oil/gas leakage in sealed transformers.

    Common Variants:
    Oil-impregnated paper-insulated bushings (for oil-filled transformers).
    Resin-impregnated or dry-type bushings (for dry-type transformers).
    SF₆gas-insulated bushings (for gas-insulated switchgear).

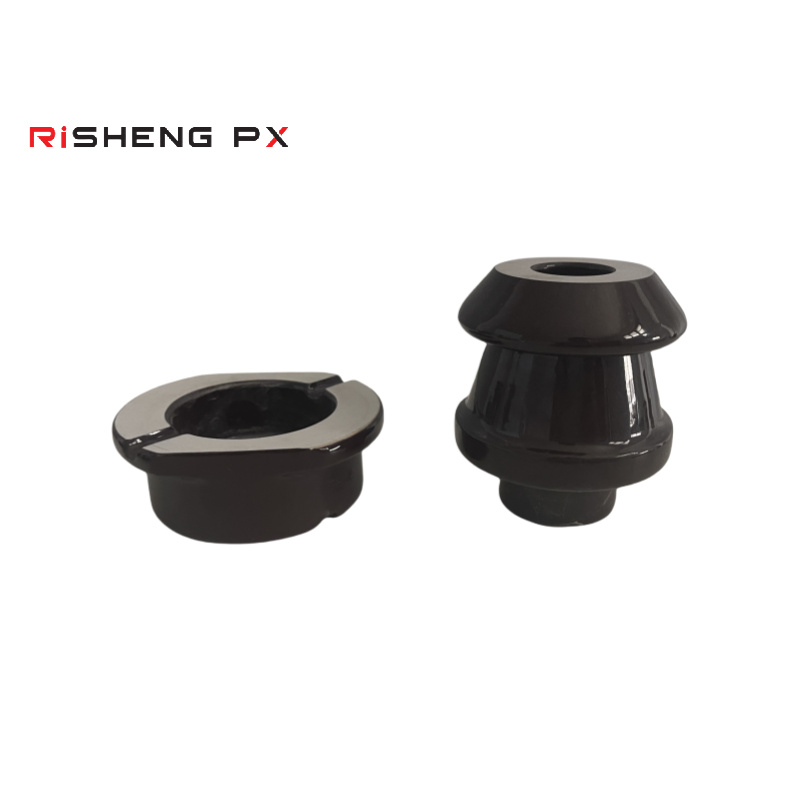

    • product description01

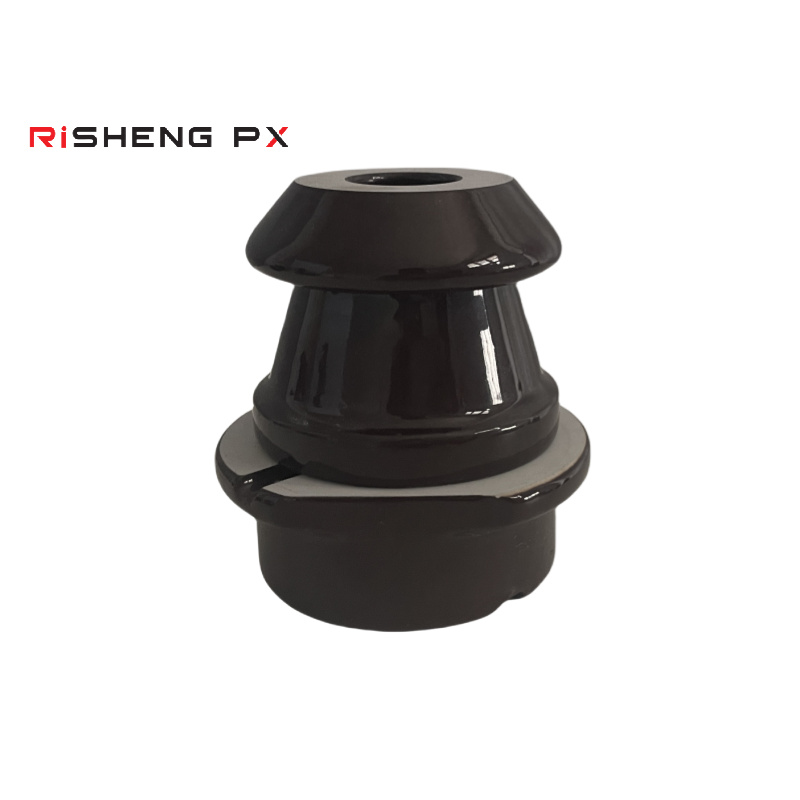

    • product description02

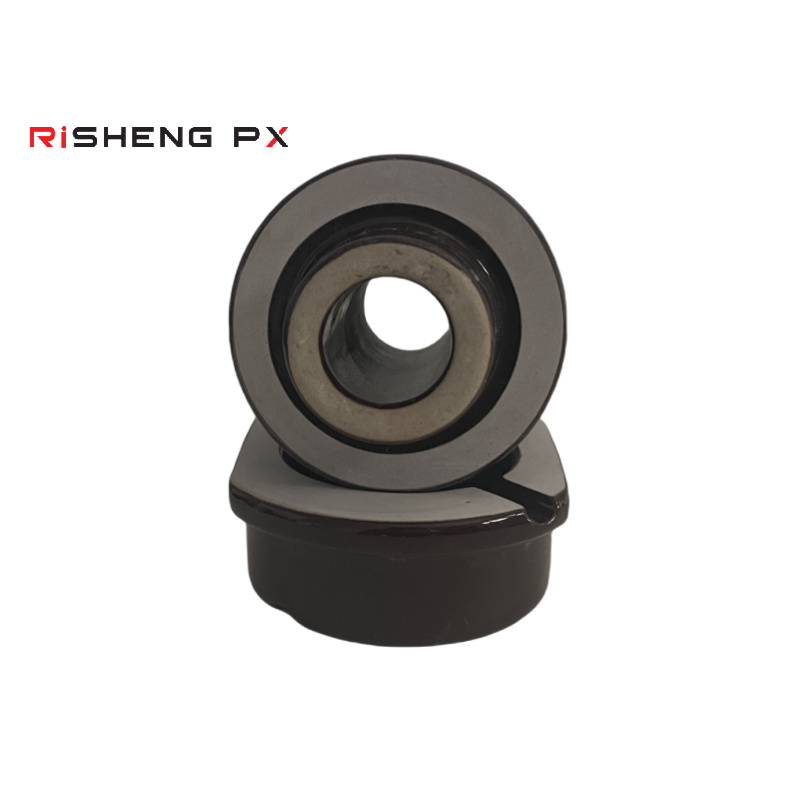

    • product description03

    specification

    Bushings are manufactured to DIN 42530,42539,42531,42532,42533,42534
    PART NUMBER DESCRIPTION Voltage RATING(KV) I RATING(A) TANK HOLESIZE mm BIL(KV) PF DRY PF WET CREEPAGE STEM CONNECTOR
    DT 1/250 DIN 42530 1/250 1KV 250 - - - - 60 M12
    DT 1/630 DIN 42530 1/630 1KV 630 45 - - - 75 M20
    DT 1/1000 DIN 42530 1/1000 1KV 1000 56 - - - 75 M30
    DT 1/2000 DIN 42530 1/2000 1KV 2000 70 - - - 75 M42
    DT 1/3150 DIN 42530 1/3150 1KV 3150 90 - - - 75 M48
    DT 3/250 DIN 42539 3/250 3KV 250 39 40 14 10 120 M12
    DT 3/630 DIN 42539 3/630 3KV 630 45 40 14 10 120 M20
    DT 3/1000 DIN 42539 3/1000 3KV 1000 56 40 14 10 125 M30
    DT 3/2000 DIN 42539 3/2000 3KV 2000 70 40 14 10 125 M42
    DT 3/3150 DIN 42539 3/3150 3KV 3150 90 40 14 10 125 M48
    DT 3/4500 DIN 42539 3/4500 3KV 4500 119 40 14 10 130 M55
    DT 3/6500 DIN 42539 3/6500 3KV 6500 119 40 14 10 130 M75
    10NF250 DIN 42531 10NF250 12KV 250 78 75 28 - 305 M12
    10NF630 DIN 42532 10NF630 12KV 630 90 75 28 - 305 M20
    10NF1000 DIN 42533 10NF1000 12KV 1000 110 75 28 - 295 M30
    10NF2000 DIN 42533 10NF2000 12KV 2000 135 75 28 - 295 M42
    10NF3150 DIN 42533 10NF3150 12KV 3150 135 75 28 - 295 M48
    20NF250 DIN 42531 20NF250 24KV 250 78 125 50 - 450 M12
    20NF630 DIN 42532 20NF630 24KV 630 90 125 50 - 440 M20
    20NF1000 DIN 42533 20NF1000 24KV 1000 110 125 50 - 445 M30
    20NF2000 DIN 42533 20NF2000 24KV 2000 135 125 50 - 445 M42
    20NF3150 DIN 42533 20NF3150 24KV 3150 135 125 50 - 445 M48
    30NF250 DIN 42531 30NF250 36KV 250 78 170 70 - 607 M12
    30NF630 DIN 42532 30NF630 36KV 630 90 170 70 - 662 M20
    30NF1000 DIN 42533 30NF1000 36KV 1000 110 170 70 - 635 M30
    30NF2000 DIN 42533 30NF2000 36KV 2000 135 170 70 - 635 M42
    30NF3150 DIN 42533 30NF3150 36KV 3150 135 170 70 - 635 M48

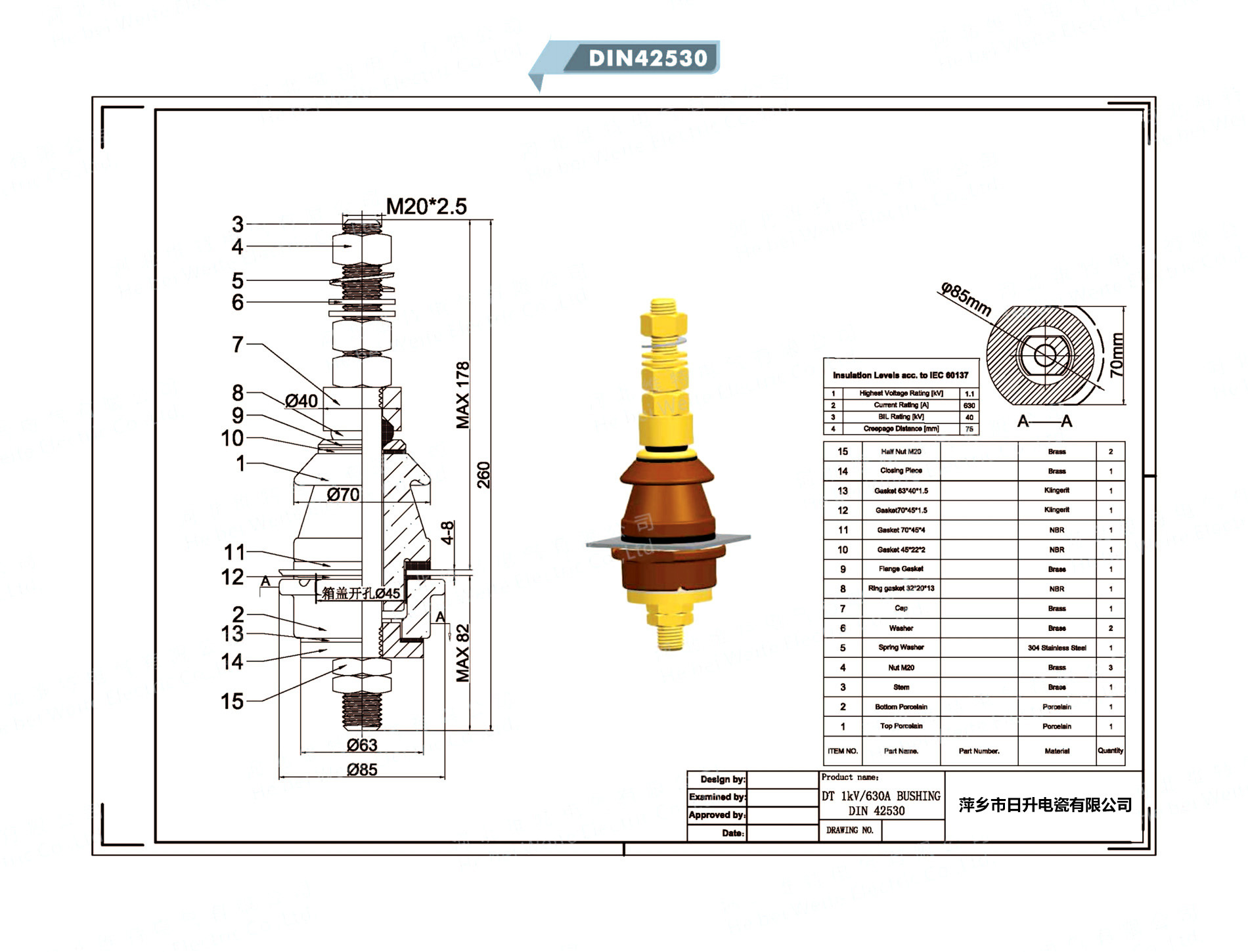

    product description04
