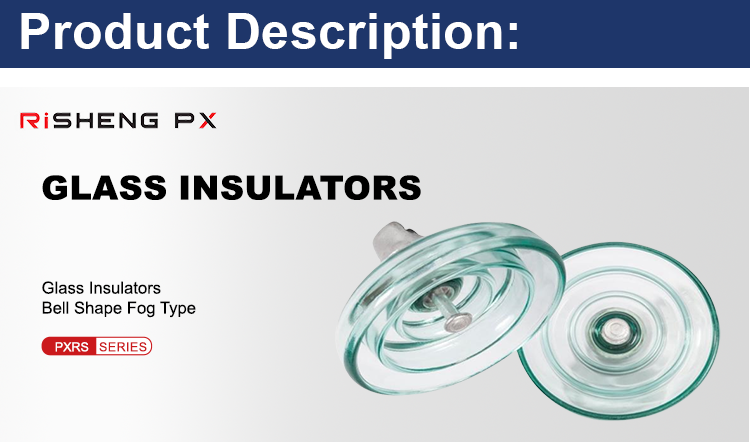

Fog Type Glass Suspension Glass Insulators

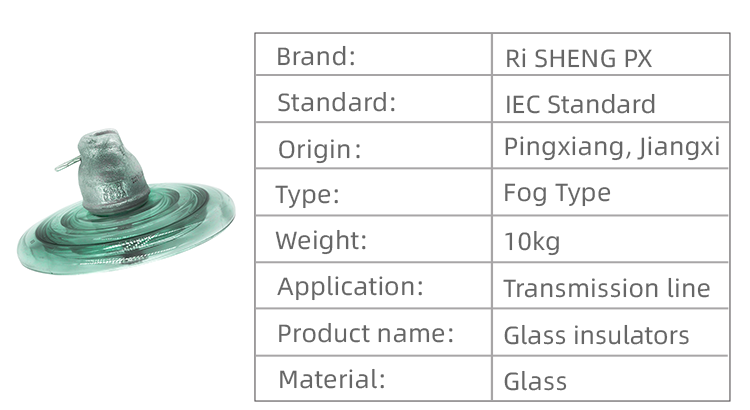

Brand: Risheng PX

Standard: IEC

Origin: Pingxiang City, China

Type: Fog Type Glass Insulators

Application: Transmission Line

Product Name: Bell Shape Glass Insulators

Material: Glaa

    Contact us
    Product Details


    IEC Type Diameter
    D(mm)     		Height
    H(mm)     		Creepage Distance
    (mm)     		Size of Coupling
    (mm)     		Mechanical Failing Load
    (KN)     		Mechanical Routine Test (KN) Power Frequency Withstand Voltage
    Dry (KV)     		Power Frequency Withstand Voltage
    Wet (KV)     		Lighting Impulse Withstand Voltage
    (KV)     		Min Power Frequency Puncture Voltage
    (KV)     		Unit Weight
    (kg)
    U70BP/146 260 146 400 16 70 35 80 45 110 130 5.0
    U70BLP/146 280 146 450 16 70 35 85 50 125 130 5.5
    U70BP/146 320 146 550 16 70 35 90 55 140 130 7.5
    U100BLP/146 260 146 400 16 100 50 80 45 110 130 5.0
    U100BLP/146 280 146 450 16 100 50 85 50 125 130 5.5
    U100BP/146 320 146 550 16 100 50 90 55 140 130 7.5
    U120BLP/146 260 146 400 16 120 60 80 45 110 130 5.0
    U120BP/146 280 146 450 16 120 60 85 50 125 130 5.5
    U120BP/146 320 146 550 16 120 60 90 55 140 130 7.5
    U160BSP/155 280 155 450 20 160 80 85 50 125 130 7.0
    U160BP/170 280 170 450 20 160 80 85 50 125 130 7.2
    U160BLP/170 320 170 550 20 160 80 90 55 140 130 9.2
    U160BP/155 320 155 550 20 160 80 90 55 140 130 9.0
    U160BSP/146 320 146 550 20 160 80 90 55 140 130 8.8
    U210BP/170 320 170 550 20 210 105 90 55 140 130 10.0
    U240BP/170 320 170 550 24 240 120 90 55 140 130 10.5
    U300BP/195 390 195 710 24 300 150 95 60 150 130 14.0
