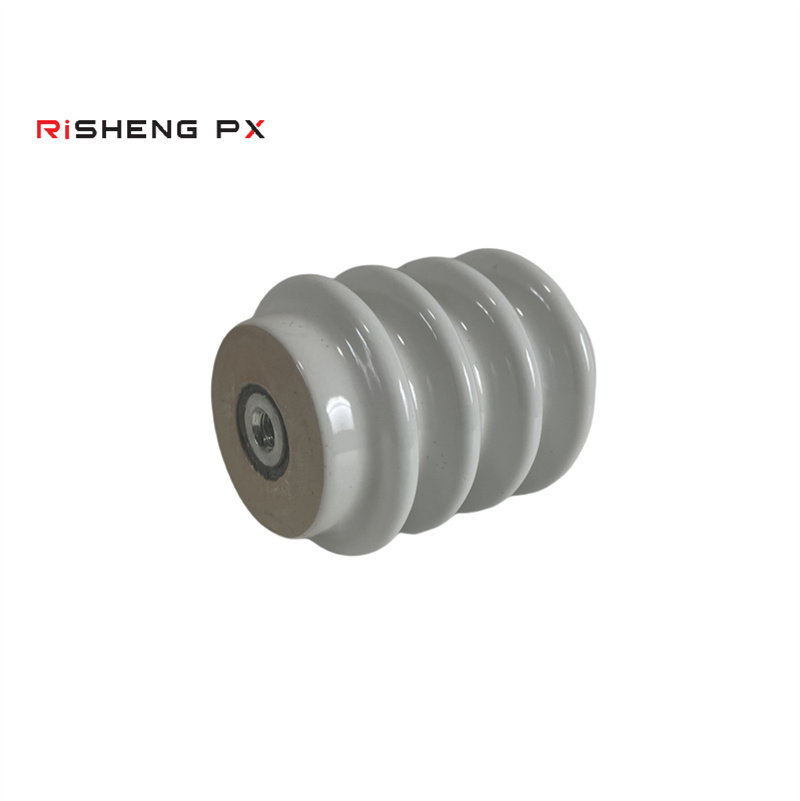

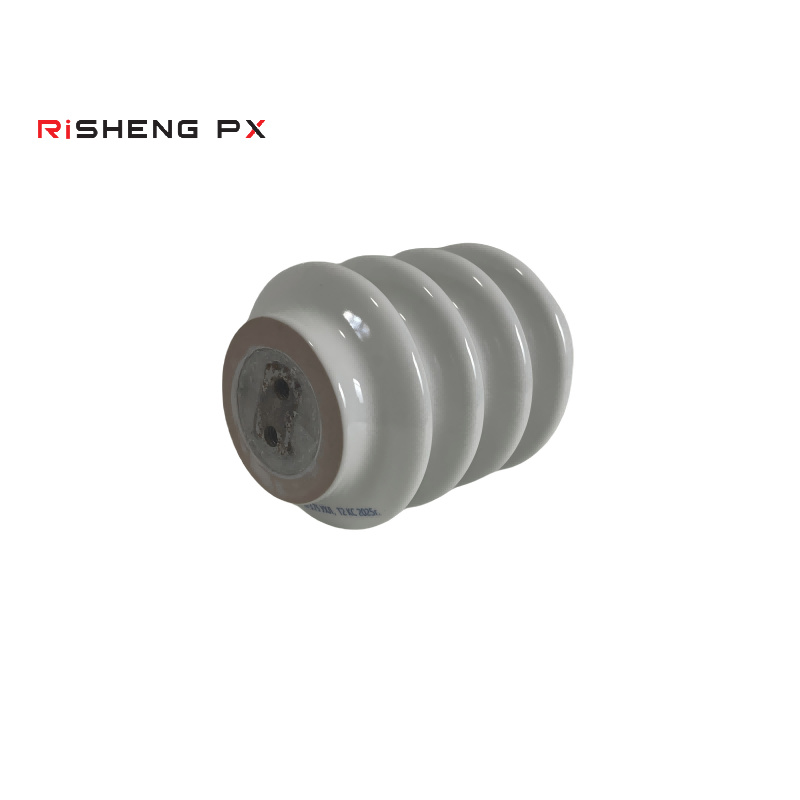

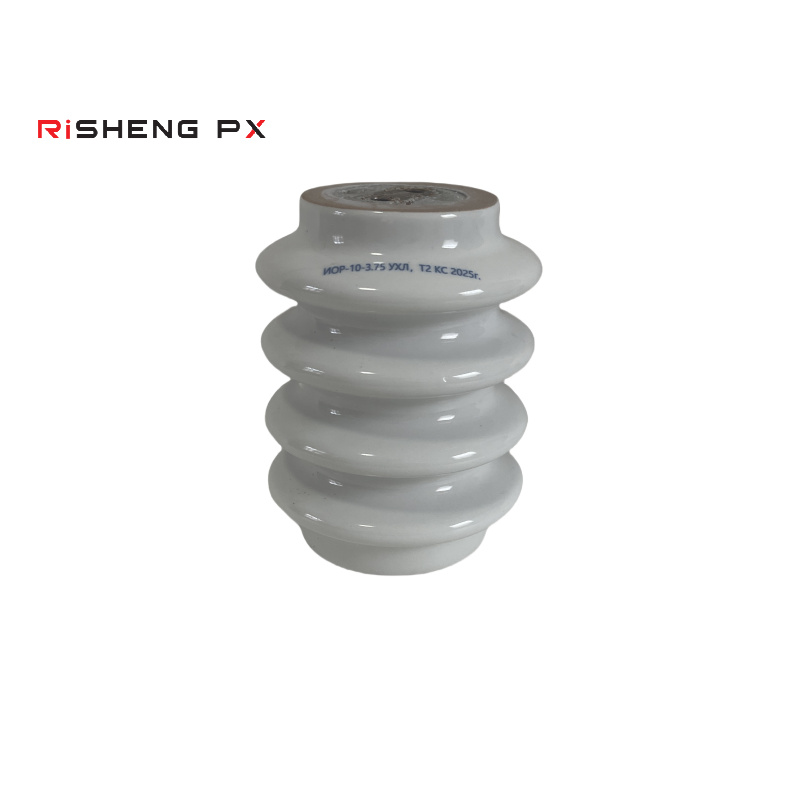

Russia Standard 10KV-3.75KN Post Insulators II y3

Insulator Post bushing The IOR 10 3.75 II UHL2 insulator is an electrical insulation element designed for use in electrical power. It is a ceramic insulator that is used to attach wires and cables to the supports of electric lines.

IOR 10 3.75 II UHL2 insulator has the following characteristics:

 - diameter: 54 mm;

 - height: 272 mm;

 - minimum test voltage: 75 kV;

 - strength class: II;

 - class of resistance group to short voltage pulses: UHL2.

The IOR 10 3.75 II UHL2 insulator is made of quality ceramics, which provides it with high electrical insulation and resistance to atmospheric influences. It is easy to install on supports and provides reliable fixation of wires.

This insulator is widely used in power industry to build power transmission lines and provide electrical safety. It is characterized by high technical characteristics and durability, which makes it an indispensable element in the operation of electric power systems.
